Pressure Testing

Hydro Test Pumps for Pipes, Vessels, Boilers and Valves

Hydrostatic test pumps for fabricators, pipeline contractors, boiler makers and inspection teams that need to pressurise components safely and hold test pressure to prove integrity and find leaks.

  • 70 to 1400 bar
  • Electric or diesel
  • Trolley or skid
Hydro Test Pumps for Pipes, Vessels, Boilers and Valves

Talk to a pump engineerSend your flow, head and liquid — we suggest the right model.
Pressure Testing

Reliable pressure for every hydrostatic test

Hydrostatic testing fills a component with an incompressible liquid, usually water or oil, and raises the pressure slowly to a set point using a positive displacement plunger pump with relief and control valves. The pressure is held for a defined period while the part is inspected for leaks or pressure drop. The method is used on tubes, pipes, hoses, cylinders, pressure vessels, boilers, valves, castings and cross-country pipelines.

Pumping Solutions supplies hydro test pumps and complete test equipment from 12 LPM to 445 LPM and from 70 bar (1000 psi) to 1400 bar (20,000 psi). Units are available with electric motor or diesel engine drive, on a trolley or base frame, and with brass or stainless steel pump heads. Hand-operated pumps are also available for small components and field checks.

Key highlights

  • Test pressures from 70 bar up to 1400 bar
  • Flow from 12 LPM to 445 LPM
  • Electric, diesel or hand-operated pumps
  • Trolley or base frame mounted units
  • Brass or stainless steel pump heads
  • Gauge, PRV, strainer and hose supplied
Why it works

Features of our hydro test equipment

Controlled pressure rise

Plunger pumps with regulating valves raise pressure gradually to the set point and hold it steady for inspection.

Electric or diesel drive

Electric units suit workshops and plants with steady power, while diesel-driven sets work along pipeline routes and on sites without any supply.

Trolley or skid mounting

Trolley units move easily around a shop floor, while base frame sets suit fixed test bays and site containers.

Safety relief built in

Relief and non-return valves protect the pump, the test piece and the operator from accidental overpressure during filling, pressurising and holding.

Brass or SS heads

Choose brass pump heads for clean water service, or stainless steel where corrosion resistance or compatibility with the test medium matters more.

Low maintenance

Durable plunger seals and long-life wear parts give extended packing life, keeping running costs low and test equipment available when needed.

Technical data

Hydro test pump specifications

Overall flow range 12 to 445 LPM
Overall pressure range 70 bar (1000 psi) to 1400 bar (20,000 psi)

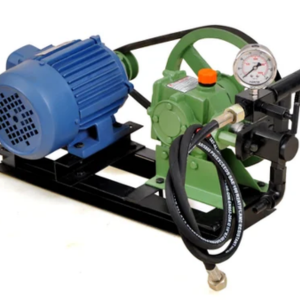

Electric hydro test pump (RJH) 12 to 300 LPM, 100 to 1000 bar, direct coupled

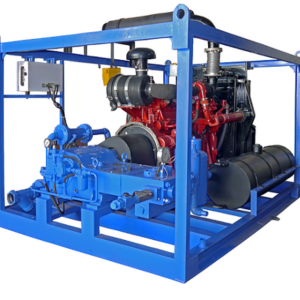

Diesel engine driven pump 100 to 1000 bar
Pump head material Brass or stainless steel
Test medium Water
Mounting Trolley or base frame
Hand-operated pump tank 22 litres
Hand pump output 14.17 cc per stroke, 19 mm plunger
Hand pump discharge 3/8 inch pipe with 1/2 inch BSP connection both sides
Standard accessories Pressure gauge, PRV, strainer, ball valve, non-return valve, HP hose
Applications

Hydro test applications

  • Pipes and tubes
  • Cross-country pipelines
  • Boilers
  • Pressure vessels
  • Gas cylinders
  • Valves
  • Castings
  • Hoses
  • CI water mains

Not sure this is the right fit?

Send us your duty point and site conditions. A pump engineer will check the selection and suggest alternatives if needed.

How we work

From enquiry to a running pump

A simple, engineer-led process — so you get the right pump the first time.

  1. Share your duty

    Tell us the liquid, flow, head, temperature and where the pump will run.

  2. Get a sized proposal

    Our engineers select the pump type, model, material and motor that fit the duty point.

  3. Supply & installation

    We supply the pump or system and can install, align and commission it on site.

  4. Service that continues

    Preventive maintenance, spares and repairs keep the system running efficiently.

FAQs

Hydro Test Pump — FAQs

Straight answers to the questions buyers ask us most. Can't find yours? Ask an engineer directly.

How do I select a hydro test pump?

Start with the required test pressure, usually set by the design code, and the internal volume of the component. Pressure decides the pump rating, while volume and acceptable fill time decide the flow. Also consider power availability, portability and the test medium. Share these details and we will recommend a suitable pump and drive.

Should I choose an electric or diesel hydro test pump?

Electric pumps are quieter and ideal for workshops and plants with a steady power supply. Diesel-driven pumps are preferred for pipeline testing and remote sites where power is unavailable. Both use similar plunger pumps; the choice mainly depends on where testing will take place and how often the unit moves.

When is a hand-operated hydro test pump enough?

Hand pumps suit small components such as valves, short pipe spools, hoses and cylinders, or quick field checks where only a small volume must be pressurised. For large vessels, long pipelines or frequent testing, a motor or engine-driven pump saves considerable time and gives steadier pressure control.

Can hydro test pumps use oil instead of water?

Most hydrostatic tests use water because it is safe, cheap and incompressible. Some components, such as hydraulic parts, are tested with oil to avoid contamination or corrosion. Pump materials and seals must suit the medium, so tell us if you plan to test with oil and we will confirm compatibility.

Why is hydrostatic testing safer than pneumatic testing?

Water is nearly incompressible, so it stores far less energy than compressed gas at the same pressure. If a component fails during a hydrostatic test, the pressure drops quickly without the violent release a gas test can cause. That is why most codes prefer hydrostatic testing wherever it is practical.

What accessories come with a hydro test pump?

A typical set includes the drive motor or engine, trolley or base frame, pressure gauge, pressure regulating valve, inlet strainer, ball valve, non-return valve and high-pressure hose. Additional items such as pressure recorders or extra gauges can be added based on your testing and documentation needs.

Get a hydro test pump sized for your test pressure

Send your test pressure, component volume and power availability, and we will recommend the right hydro test pump.
